Graph and Nodes

Graph​

The graph defines the agent's behavior, but it's not a fixed structure. The agent navigates this graph as the conversation progresses, adapting to natural dialogue.

  • Nodes allow structuring the agent's logic while remaining flexible.
  • The agent adjusts its responses if the conversation diverges from the planned script.
  • Testing is essential to ensure the behavior matches expectations.

Node​

This section presents the different types of nodes available to define your agents' logic.

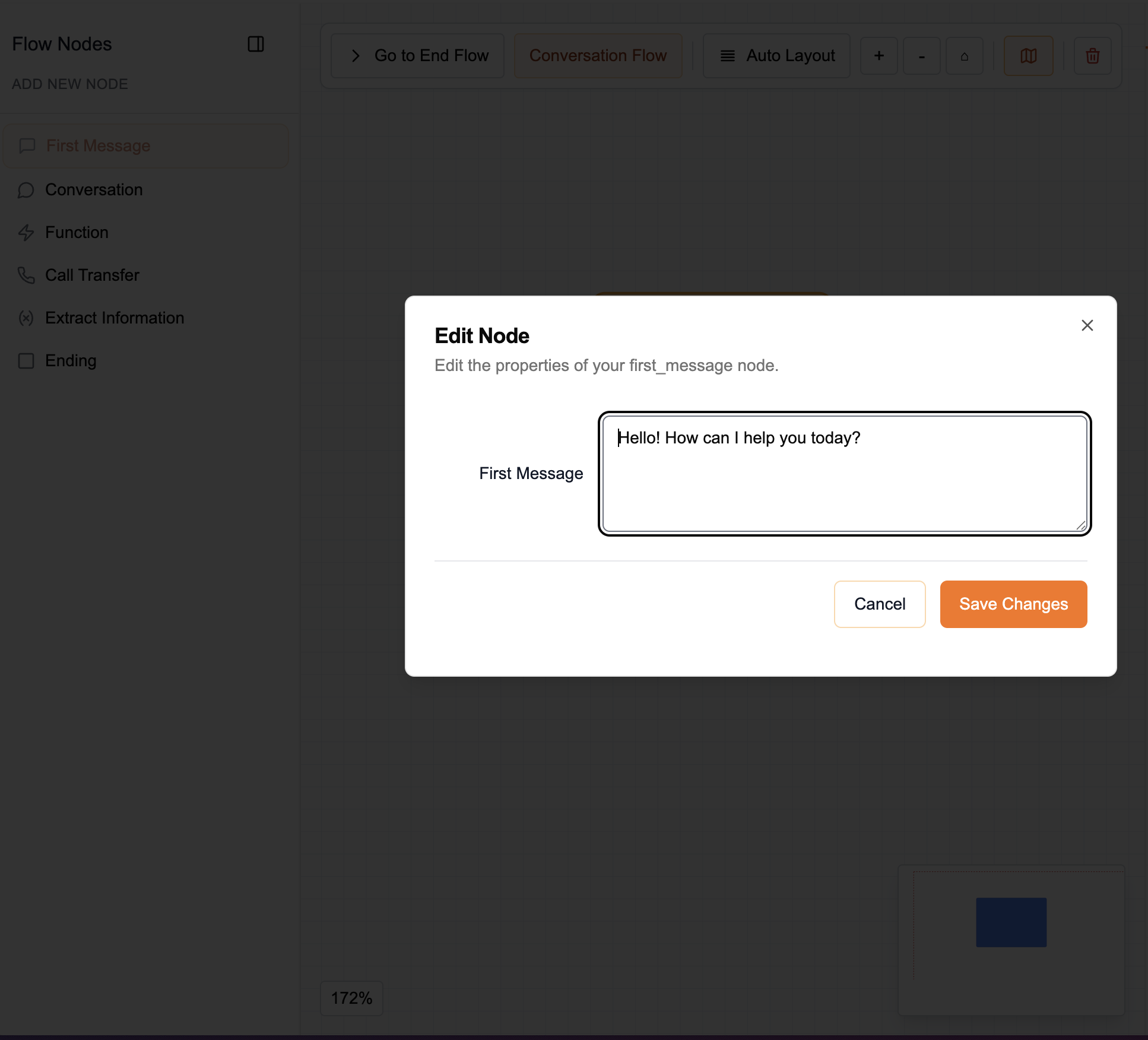

First Message​

  • Purpose: Ensure the same first message is always spoken to the caller
  • Parameters:
    • First Message: The exact message to be spoken

First Message

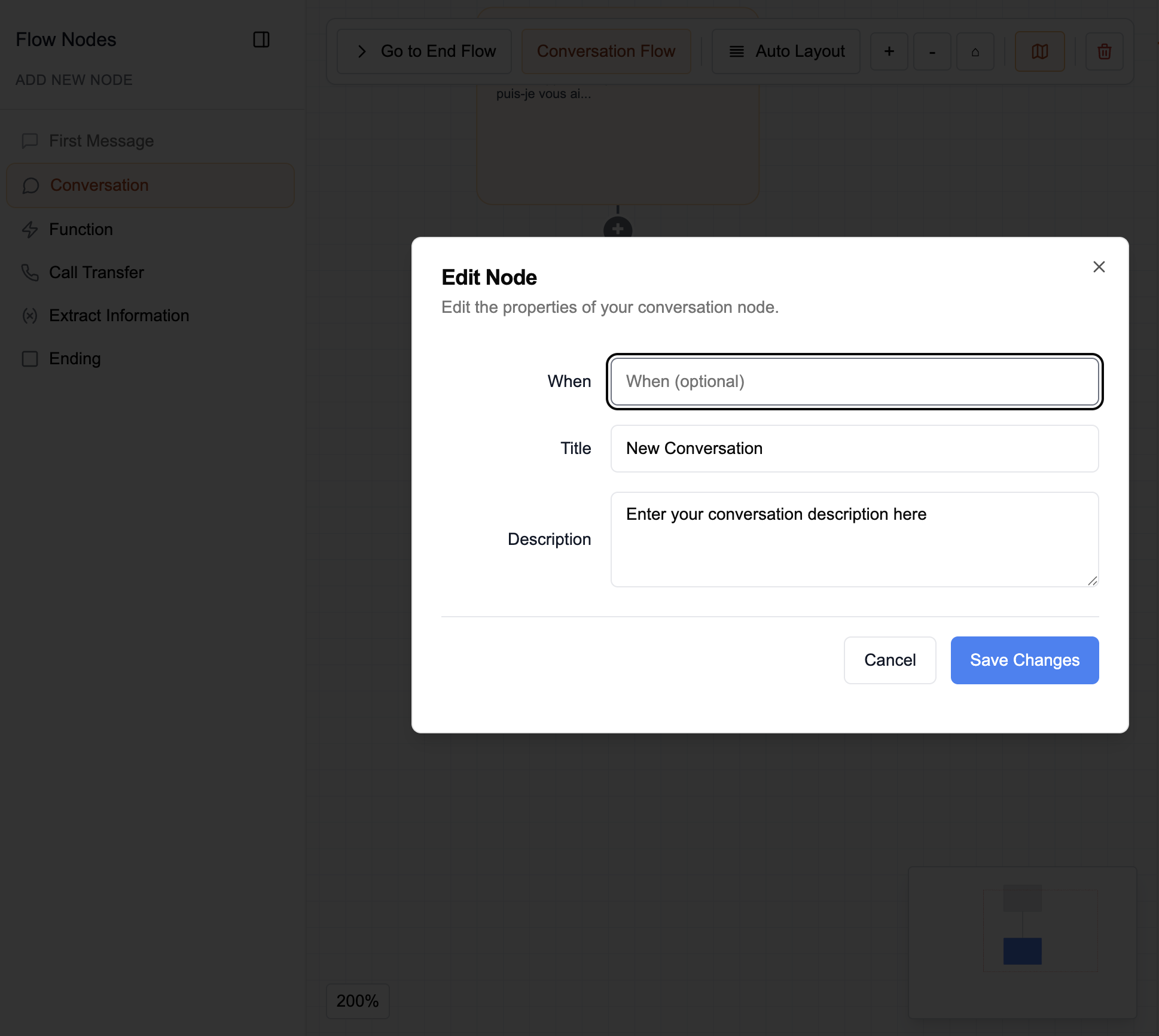

Conversation​

  • Purpose: Guide the agent in a precise conversation
  • Parameters:
    • When: A condition to specify when the conversation should be "visited"
    • Title: The conversation title
    • Description: Additional information that guides the conversation and limits its scope (conversation flow to follow, script, questions, etc.)

Conversation

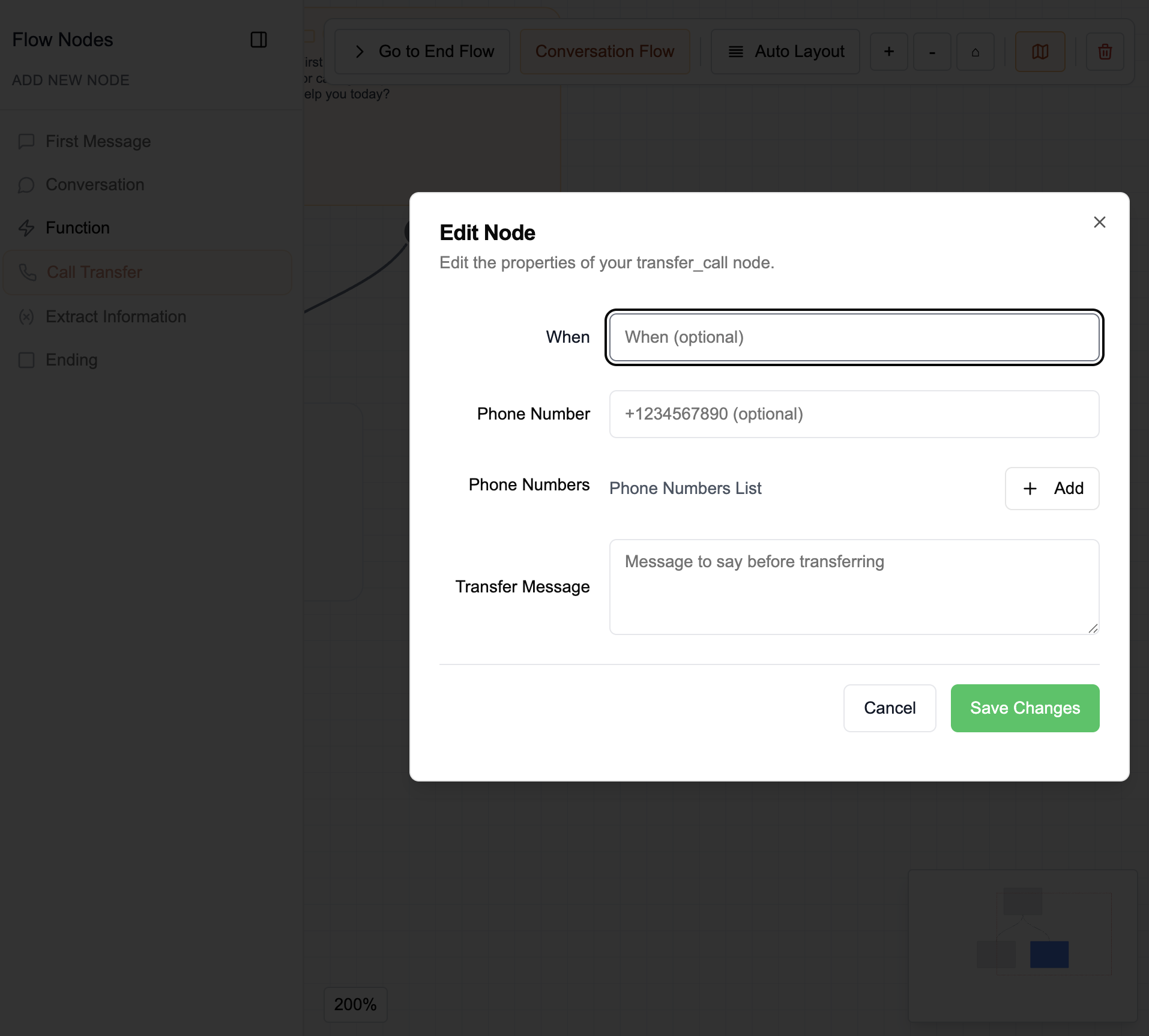

Transfer​

  • Purpose: Transfer the call to an external number
  • Parameters:
    • When: A condition to specify when the transfer should be performed
    • Phone number(s): You can specify either:
      • a single phone number to call for the transfer (e.g., 1234567890)
      • or a list of names (e.g., people or departments) associated with their respective numbers to transfer to the right person based on the name requested by the caller. (e.g., {"Technical Support": "1234567890", "Accounting": "0987654321"})
    • Transfer message: The exact message to be spoken before transferring the call

Transfer

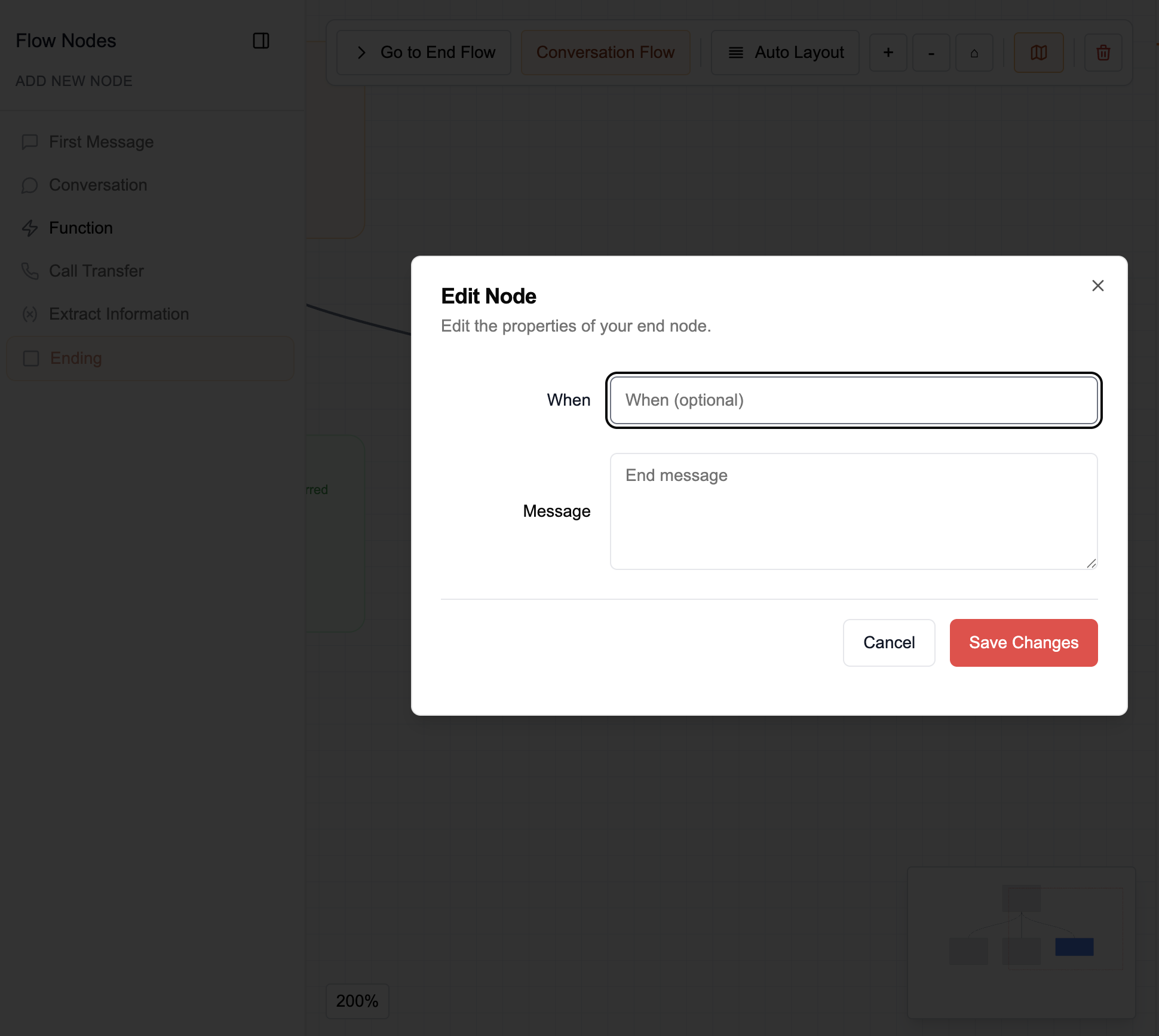

End​

  • Purpose: End the call
  • Parameters:
    • When: A condition to specify when the call should be ended
    • End message: The exact message to be spoken before ending the call

End

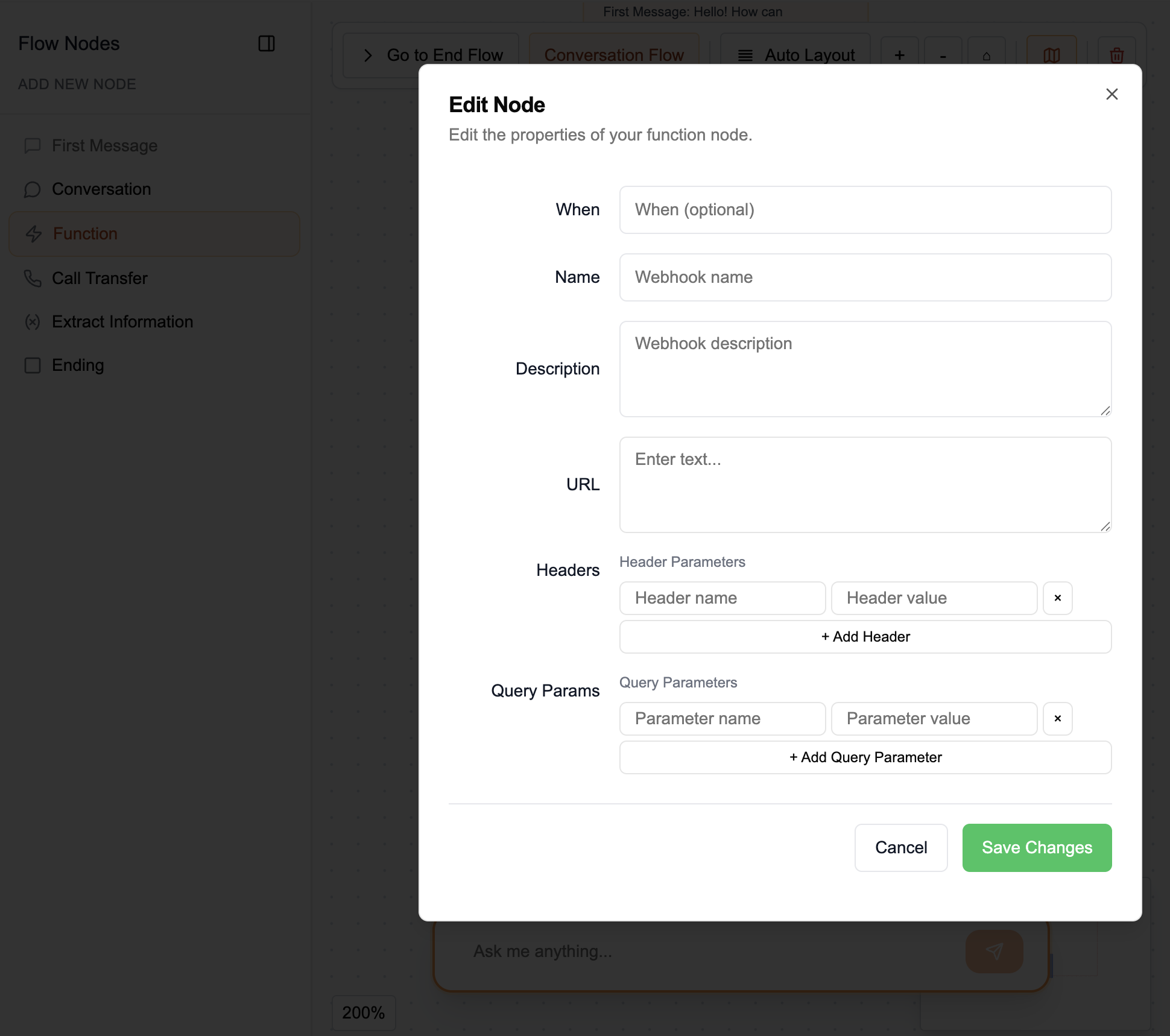

Webhook​

  • Purpose: Make HTTP requests to external APIs or services during the conversation
  • Parameters:
    • When: A condition to specify when the webhook should be triggered (optional)
    • Name: The webhook name for identification
    • Description: Additional information describing the webhook's purpose
    • URL: The endpoint URL to call
    • Headers: HTTP headers to include in the request (header name and value pairs). You can add multiple headers.
    • Query Params: Query parameters to include in the request (parameter name and value pairs). You can add multiple query parameters.

Webhook
